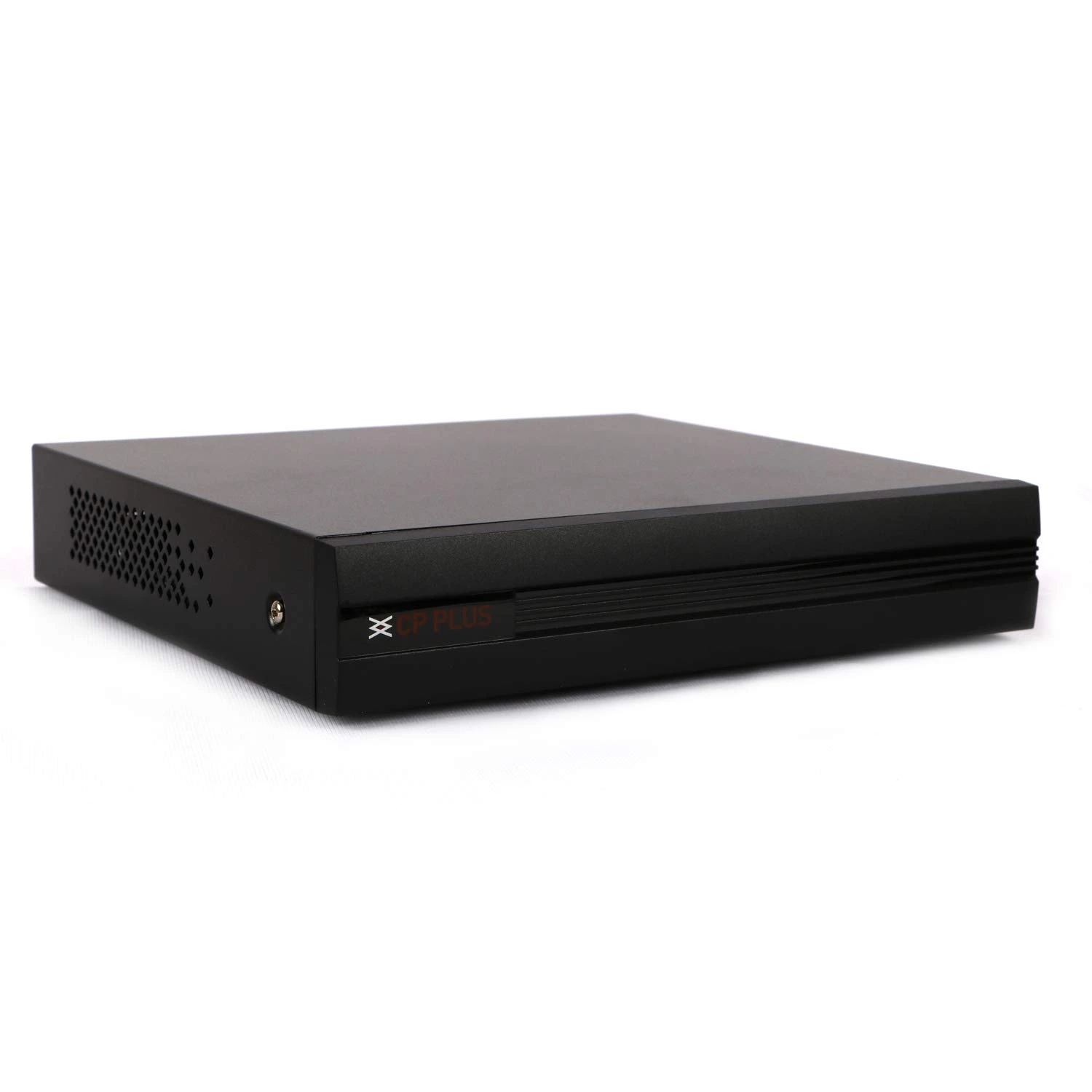

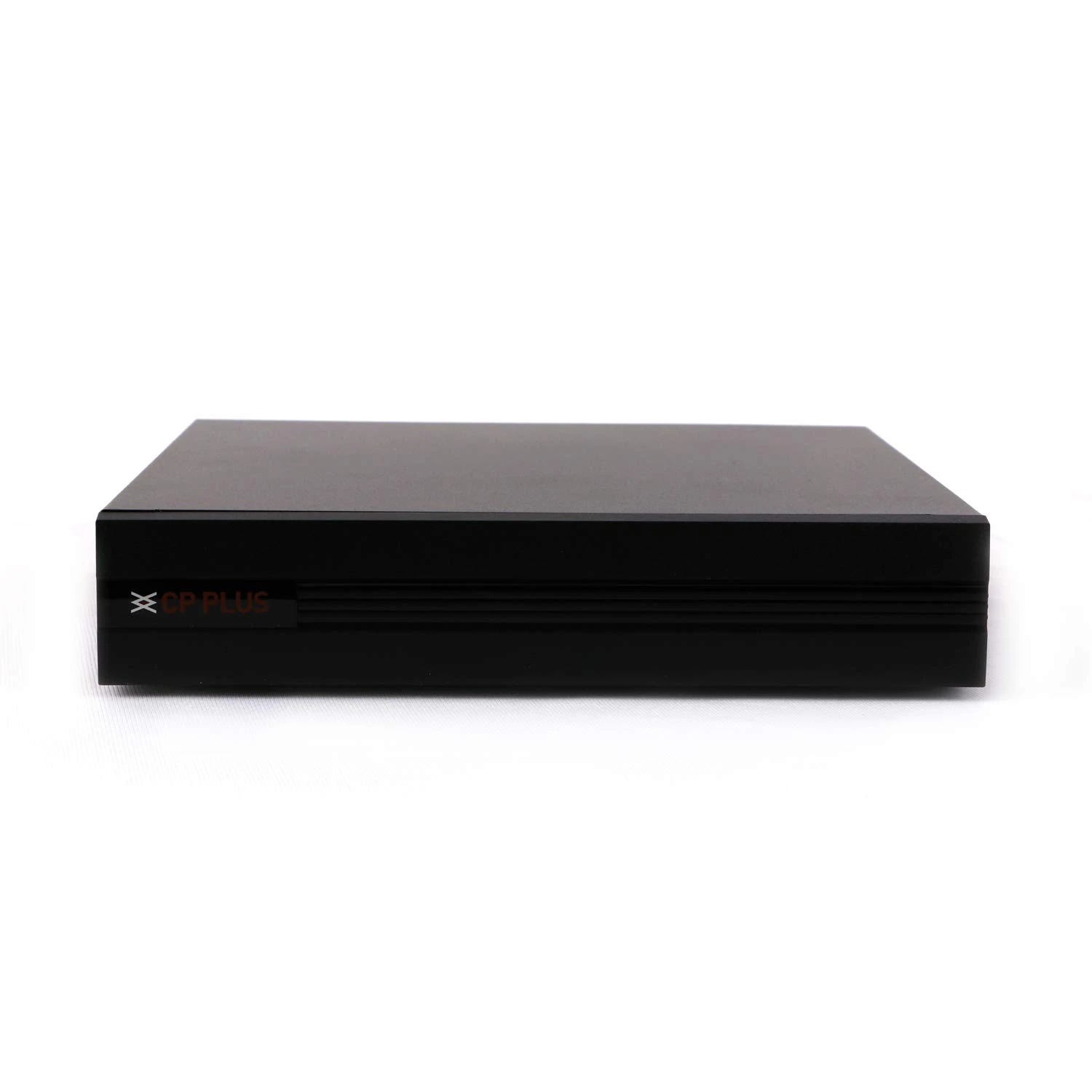

CP-UVR-1601E1-HC 16 Ch. 1080P Lite Cosmic HD DVR Auto Adaptive HDCVI/AHD/TVI/CVBS/IP signals Support upto 6MP IP Camera Max 72Mbps Incoming Bandwidth H.265+/ H.265 dual-stream video compression All channel 1080P Lite Non-Realtime Recording Support 1 SATA HDD up to 6TB, 2 USB2.0 HDMI / VGA Simultaneous Video Output Mobile Software: iCMOB, gCMOB CMS Software: KVMS Pro

ProcessorEmbedded processor Operating SystemEmbedded LINUX IP Camera Input16+2, each channel up to 6MP Two-way TalkReuse audio in/out, RCA User InterfaceGUI Video Input16 channel, BNC Video Output1 HDMI, 1 VGA CompressionH.265+/H.265/H.264+/H.264 Video Resolution1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF Video RecordingMain Stream:1st channel 1080N/720P(1~25/30fps), others 1080N/720P(1~15fps); 960H/D1/HD1/BCIF/CIF/QCIF(1~25/30fps), Sub stream: CIF/QCIF (1~7fps) Video Display Split1/4/8/9/16

Audio Input1 channel, RCA Audio Output1 channel, RCA Motion DetectionMD Zones: 396 (22 × 18) Video LossSupports Camera BlankSupports Hard Disk1 SATA port, up to 6TB

Smart PhoneiPhone, iPad, Android Phone Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Recording ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second) PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file,Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup, selection, Digital

ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server,P2P, ONVIF 16.12, CGI Conformant Power SupplyDC12V/2A Power Consumption<10W(without HDD) Working Temp-10°C ~ +45°C (+14°F ~ +113°F), 10 ~ 90% RH
